Description

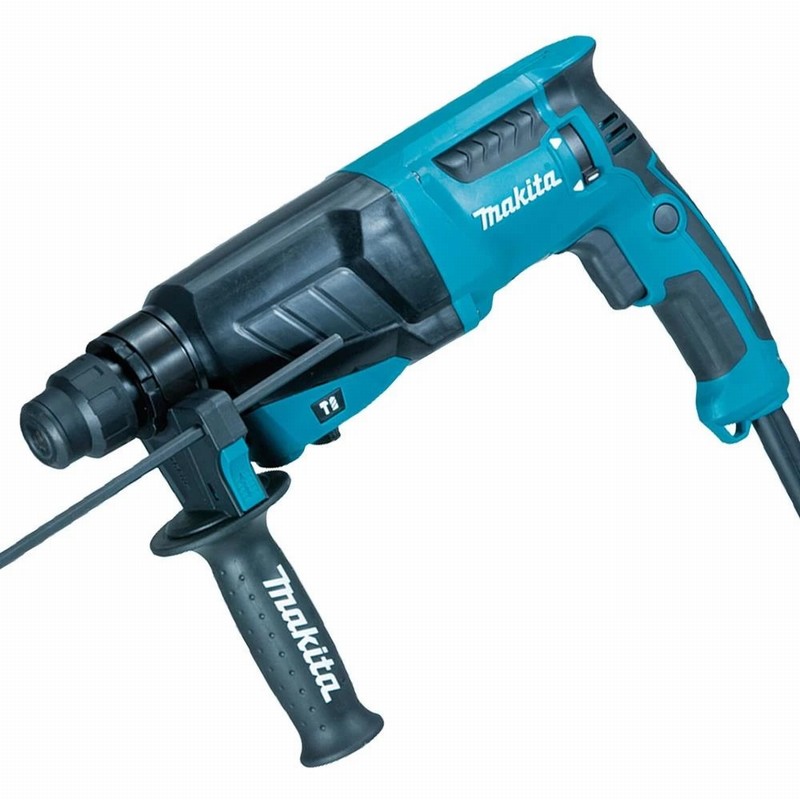

Model HR2630 is a 26mm (1″) combination hammer based on predecessor model HR2610 but with improved operation mode change lever and One touch sliding chuck for easy bit installation and removal. The HR2630 features a ergonomically designed handle with rubberised soft grip provides comfortable grip and more control while minimizing hand fatigue and pain.

Features:

• Modified operation-mode change lever enables switch from ‘Rotation’ to ‘Hammering’ mode and vice-versa without rotating the chuck.


• 3 mode operation: Rotation only / Rotation with hammering / Hammering only

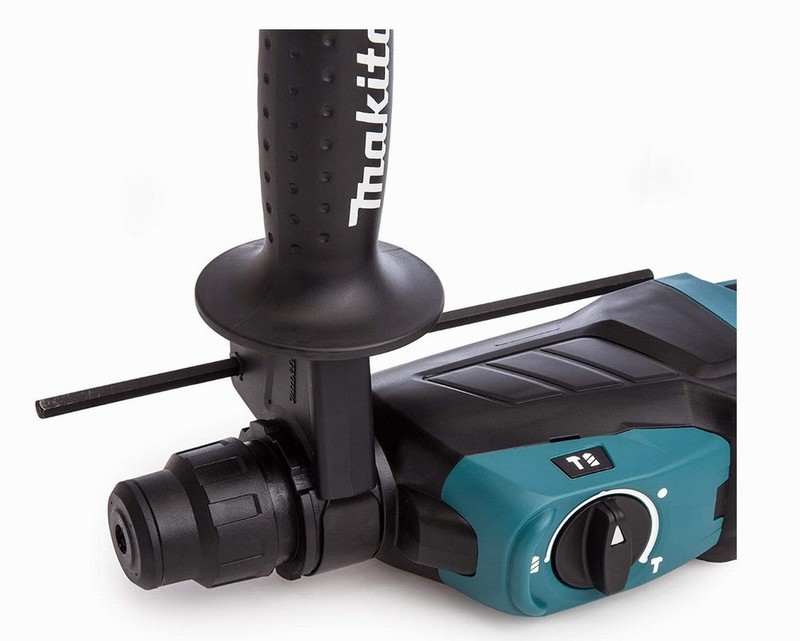

• One touch sliding chuck for easy bit installation and removal.


• Variable speed control by trigger


• Forward/reverse rotation


• Torque limiter


• Double Insulation


• 40 different bit angle settings


• Compact and lightweight design


• Depth stop


• Ergonomically designed handle with rubberised soft grip provides comfortable grip and more control while minimizing hand fatigue and pain.

Specification:

• Impact energy: 2.4 J


• Max in concrete (TCT bit): 26 mm


• Max in concrete (TCT core): 68 mm


• Max in concrete (Diamond core): 80 mm


• Max in wood: 32 mm


• Max in steel: 13 mm


• Impacts per minute: 0 – 4,600 ipm


• Input Wattage: 800 w


• Net weight: 2.8 kg


• No Load Speed: 0 – 1200 rpm


• Vibration: Chiselling: 9.5 m/sec_


• Vibration: Hammer Drilling: 15.5 m/sec_


• Noise sound pressure: 91 dB(A)
