Description

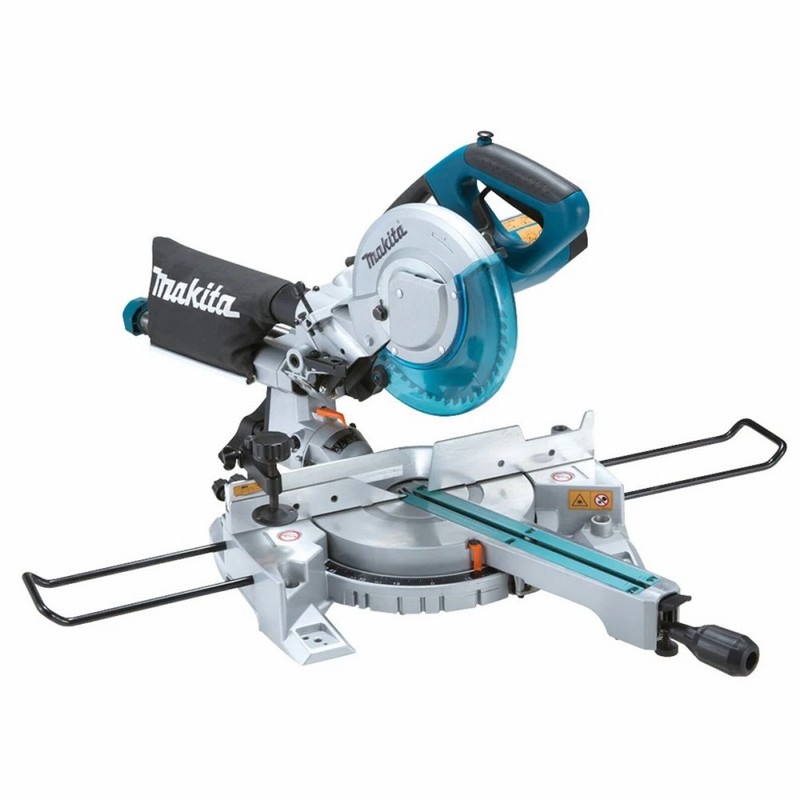

It is a 216mm (8-1/2″) cost-effective slide compound mitre saw with an integrated laser marker, LED job light and a maximum mitre range of 45-60°. With positive stops at 0, 15, 22.5, 31.6 and 45° which make mitre and repeat settings simple and quick. Four steel bars with 6 linear ball bearings are used for smooth and precise sliding action. A soft start 1,400W motor provides the power which will run the blade up to 5,000rpm without load.
The rigid, cast alloy base and twin parallel slides give a high level of accuracy with the blade at any angle. Saws with slides above each other as opposed to side by side as on the LS0815FL, prove to be inaccurate as the drive head has a tendency to tilt the slides into a curved track. Twin material support bars are fitted either side of the base plate which also has a left side sub fence with a fixed fence on the right side. The stock clamping post can be fitted to either side. A soft grip handle is provided for ease of transportation.

Features:

• Soft start


• Soft grip handle

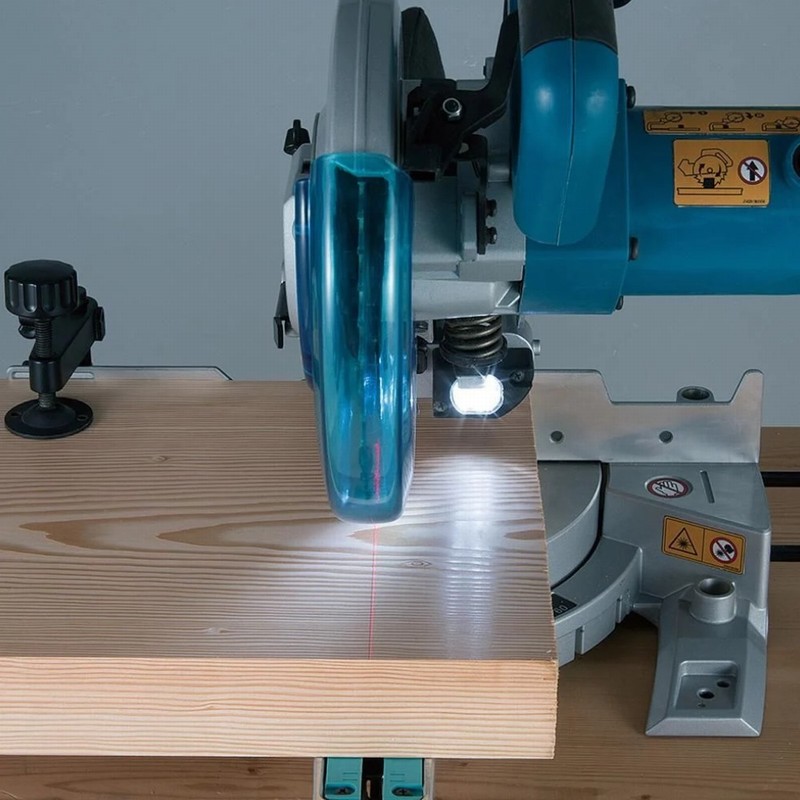

• Built in laser guide


• LED job light


• Sliding sub fence (Left side only)


• High cutting capacity


• Lightweight and portable at 14.5kg for easy site transport


• Holder can be attached to both sides of base

Specification:

• Voltage: 110v


• Laser Type: Red Laser 650 nm, <1 mW (Laser Class 2)


• Blade Diameter: 216 mm


• Blade Body Thickness: 1.5 mm – 2.5 mm


• Bore (Arbor) Diameter: 30 mm


• Max. Mitre Angle: Left 50° / Right 60°


• Max. Bevel Angle: Left 48° / Right 5°


• No Load Speed: 5,000 rpm
