Description

The DeWalt DWS780-GB is a high-quality 305mm XPS Compound Slide Mitre Saw designed for precision cutting tasks. It is equipped with a powerful 1675W motor and operates on a 240V power supply. One of its standout features is the XPS Shadow Line cut indicator, which provides an accurate and clear cutting line without the need for additional adjustments. This saw is highly versatile, allowing users to make compound, bevel, and miter cuts with ease, making it a popular choice among professional carpenters and woodworkers for its reliability and precision.

Features:

• Electronic speed control for adjusting cutting speed when cutting materials other than wood
• Outstanding cutting performance in both small profiles and large construction timbers up to 110 x 303 mm
• Heavy duty durability with the ability to fully adjust your machine to maintain accuracy over the life of the tool.
• Cam action mitre lock function makes mitre setting faster and easier allowing the user to quickly adjust angles between 0° – 50° left and 0° – 60° right

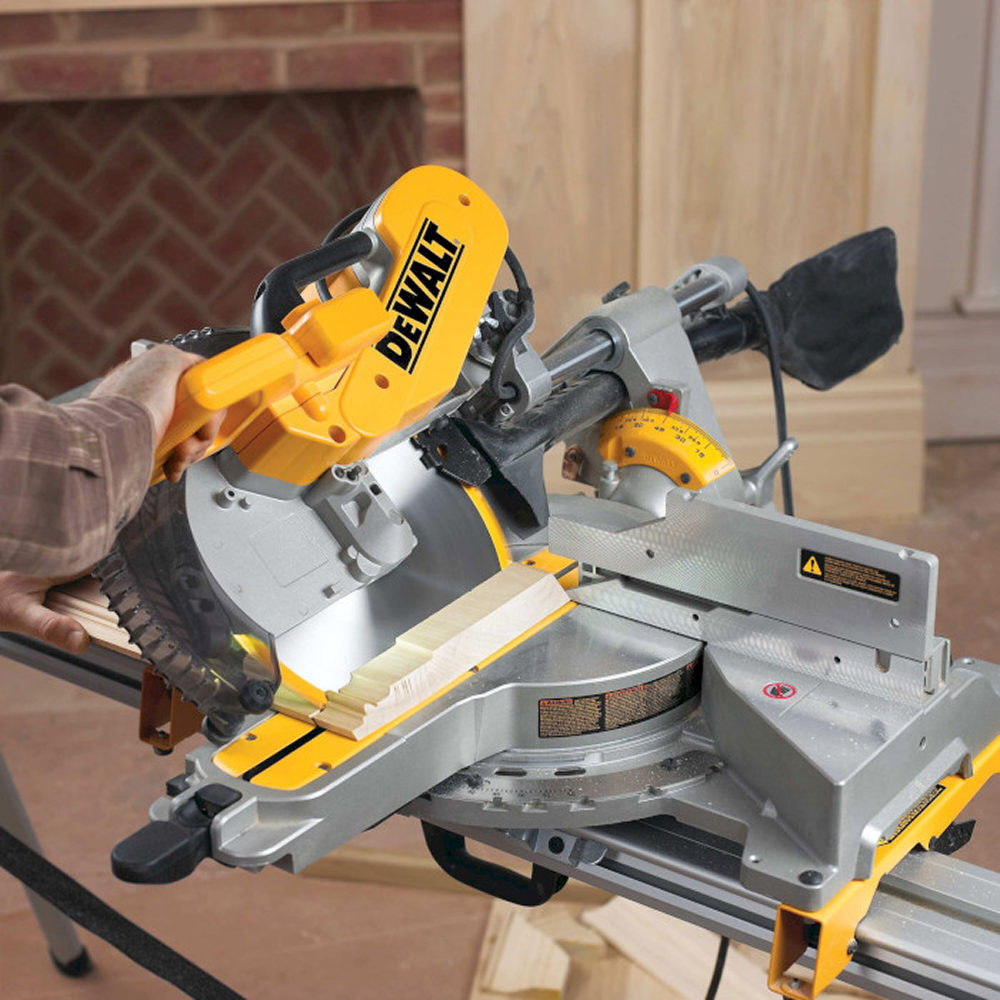

• XPS Shadow line cut indicator provides fast accurate alignment of the blade while illuminating the work piece for increased productivity no adjustment required
• New quick release bevel stop setting provides accurate and simple setting of bevel angles up to 49° left and right
• The innovative grooving stop allows the adjustment of the cutting depth for grooving and rebating applications
• Linear horizontal rails utilise bronze guides to provide maximum precision when cutting materials up to 345 mm wide
• Outstanding dust control and deflection away from cutting area

Specification:

• Blade Speed: 1900-3800 rpm
• Blade Bore [Metric]: 30 mm
• Max. Depth of Cut [Metric]: 170 mm
• Bevel Capacity: 49/49 deg
• Possible Mitre Angles: 60/50
• Max. Cutting Capacity (90°/90°) [Metric]: 303 x 110 mm
• Product Weight [Metric]: 24.8 Kg
• Max. Cutting Capacity (45°/90°) [Metric]: 211 x 112 mm
• Product Height [Metric]: 396 mm
• Uncertainty K1 (Vibration): 1.5 m/s2
• Power Output: 960 W
• Blade Diameter [Metric]: 305 mm
• Depth [Metric]: 470 mm
• Max. Cutting Capacity (90°/45°) [Metric]: 268 x 63 mm
• Power Input: 1675W
• Product Length [Metric]: 770 mm
