Description

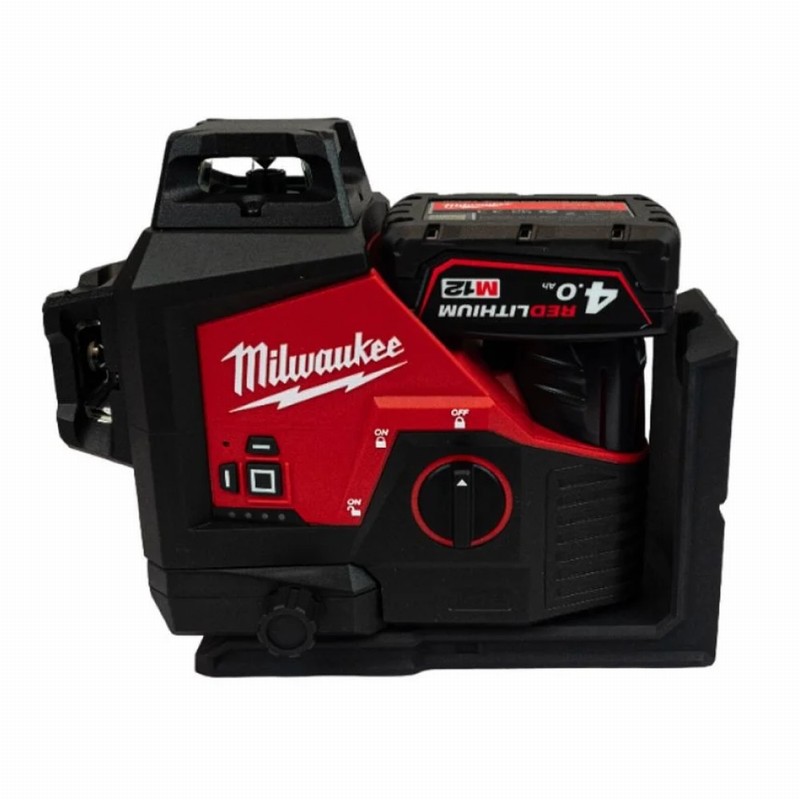

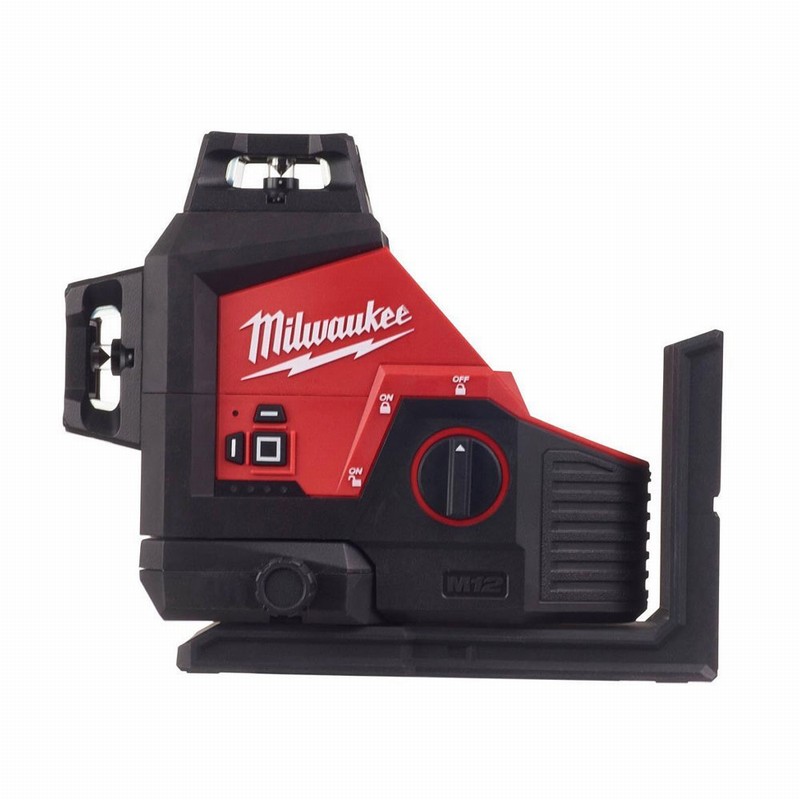

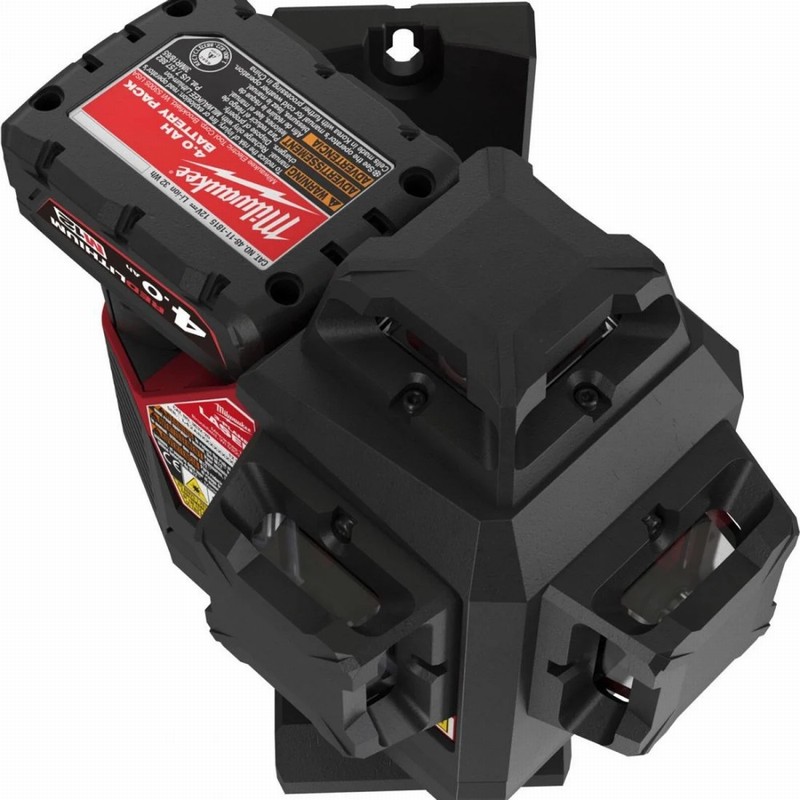

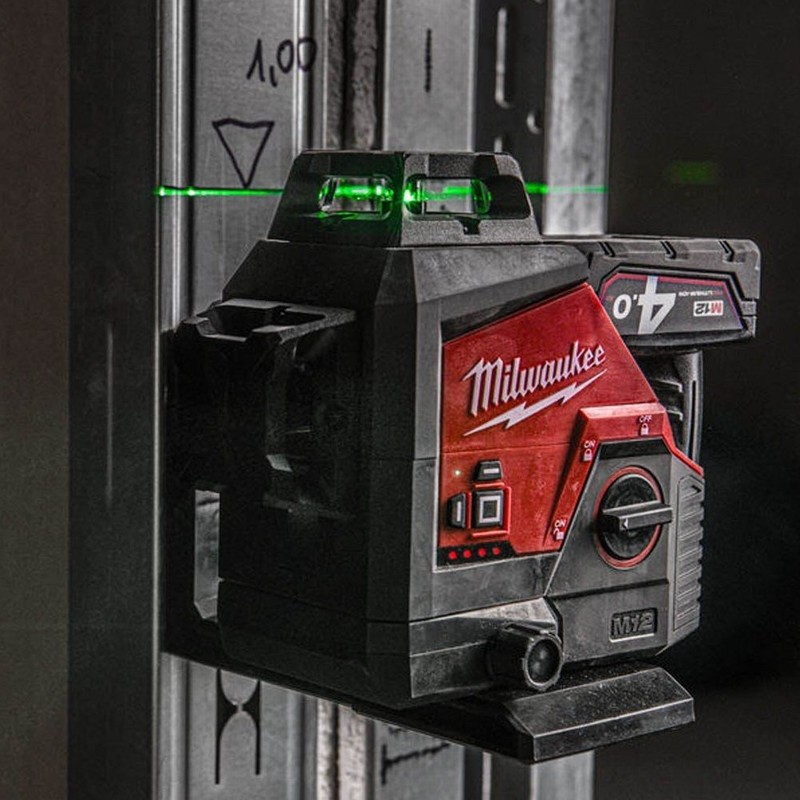

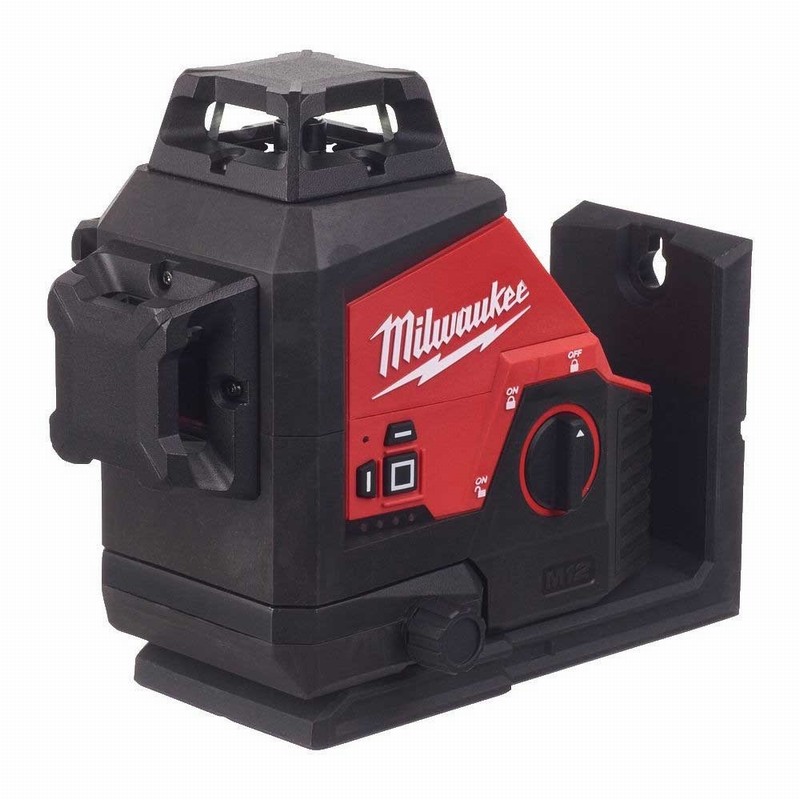

This M12 3PL Green 360° 3 Plane Laser is part of Milwaukee’s 12v range of tools. This new laser tool provides you with all day runtime – over 15 hours with the supplied 4.0Ah battery – and is set to provide the very best laser visibility in it’s class.

Features:

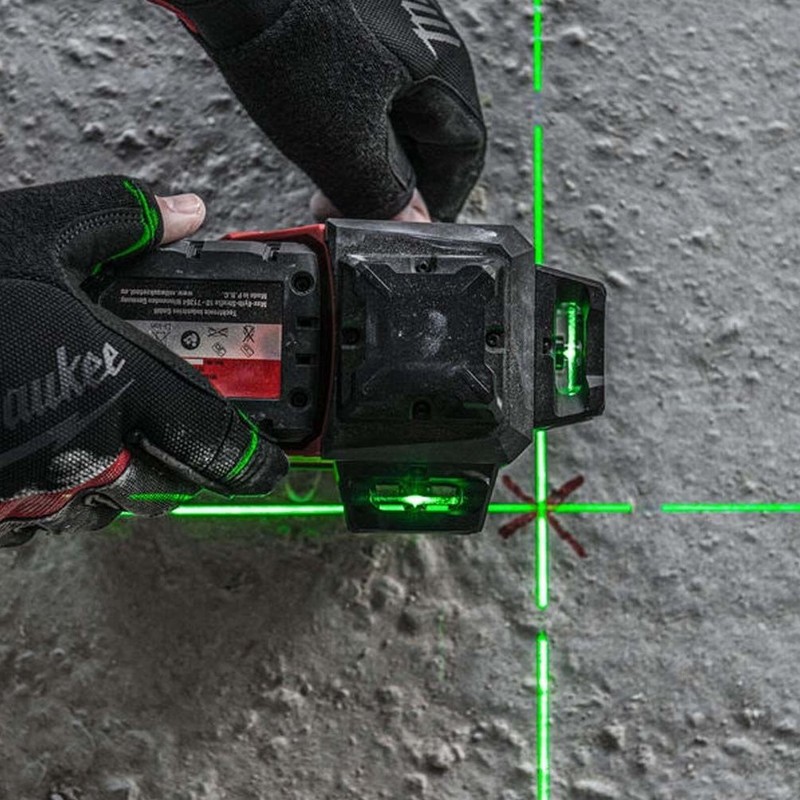

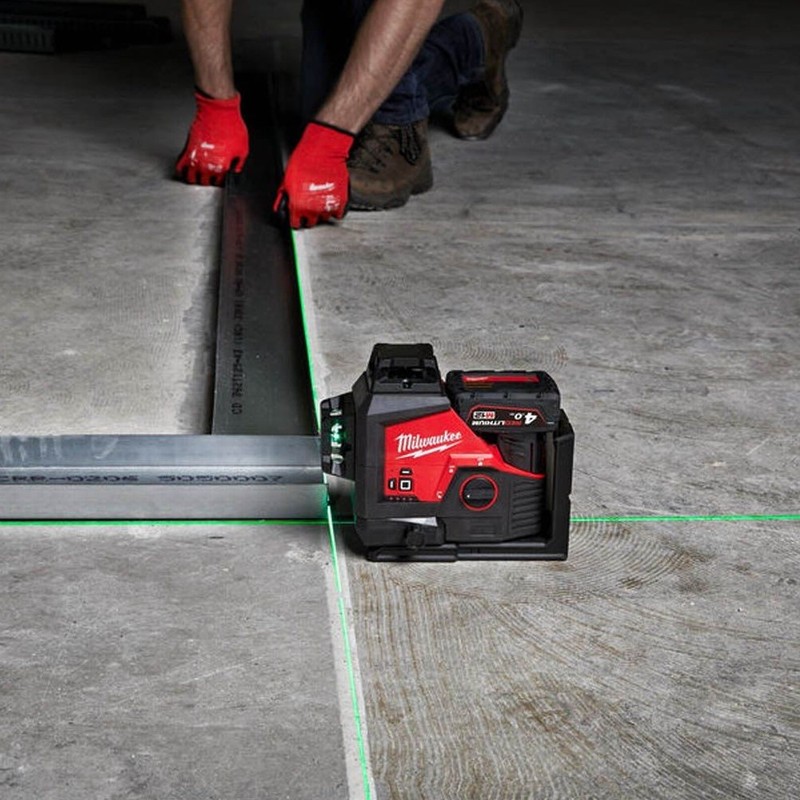

• M12 green 360° 3 plane laser provides an all-in-one functionality, with one horizontal line and two vertical lines for fast and easy alignment, leveling, squaring, and transfers – allowing you to easily layout large spaces with one tool


• Built with high intensity green diodes to provide maximised visibility – up to 4x better visibility vs red lasers


• High intensity green beams provide a working range of 38 metres (50 metres with a detector)


• Provides all-day run time of 15+ hours with an M12 B4 battery pack


• 3 mode pendulum system: Manual Mode for use at any angle, Self-Levelling Mode that indicates out-of-level condition with a 4° self-levelling range, and Pendulum Lock Mode to protect components during transport

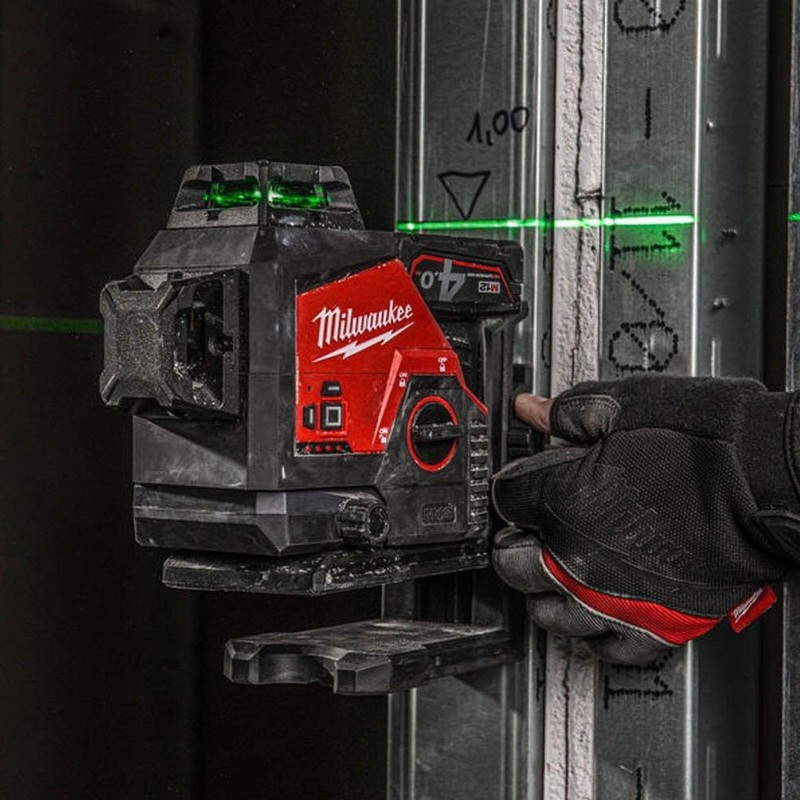

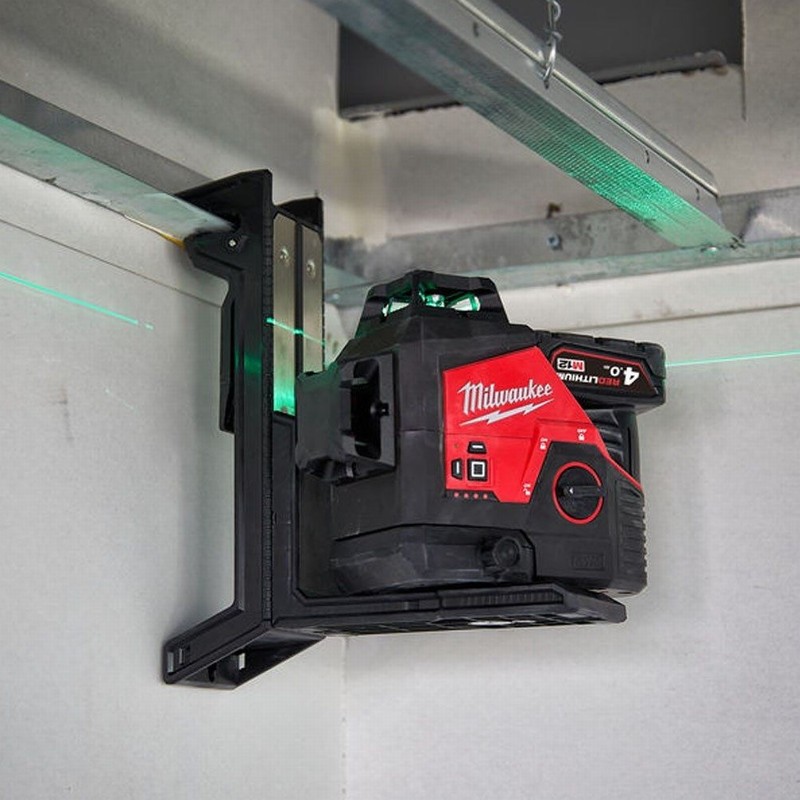

• Integrated magnetic bracket with rear mounted amplified rare earth magnets, ¼” and ?” tripod thread and hang hole – allows attachment to steel stud, wooden stud and tripod


• The bracket also provides the laser 330° rotation that pivots on plumb point, with an integrated micro control knob for faster point to point alignment


• Robust over-moulded construction with an IP54 rating, the laser is water/debris resistant and can withstand up to 1 metre drops


• Flexible battery system: works with all M12 batteries

Specification:

• Voltage: 12v


• Article Number: 4933478246


• Battery Pack Capacity: 4.0Ah


• Battery Type: Li-Ion


• Laser Line Colour: Green


• IP Protection Class: IP54


• Run Time With M12 4.0Ah Battery: 15 Hours


• Accuracy: 0.3 mm/m


• Compatible Laser Detector: LLD50


• Laser Projection: 2x Vertical, 1x Horizontal


• Self-Levelling Range: 4.0°


• Self-Levelling Time: 3 Seconds


• Working Range Detector: 50 Metres


• Working Range Visible: 38 Metres

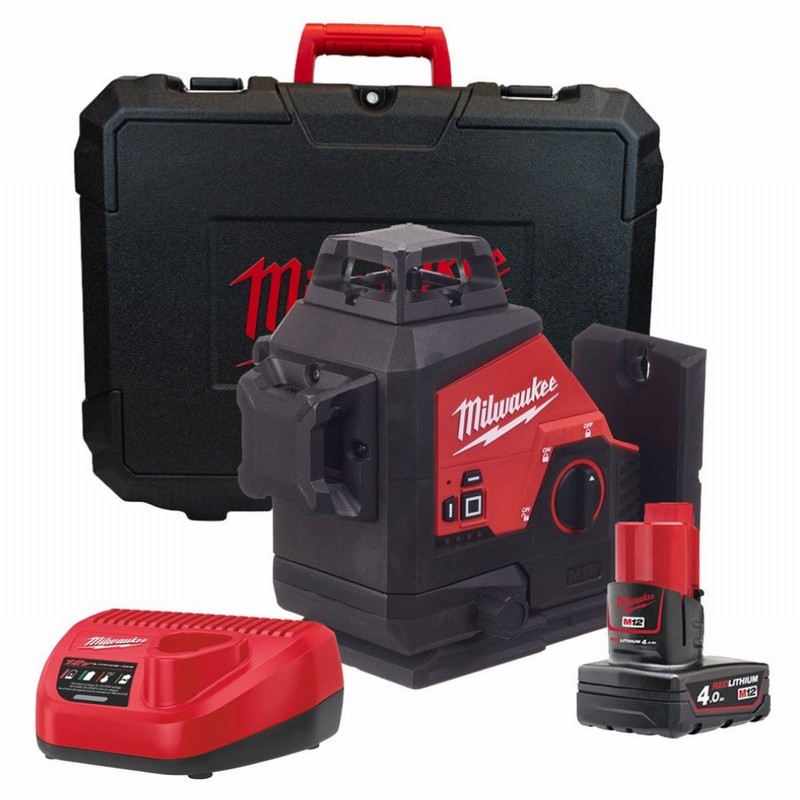

Kit Includes:

• 1x M12 3PL 3 Plane Laser


• 1x M12 B4 4.0Ah Battery


• 1x C12 C Charger


• 1x Track Clip


• 1x HI-VIS Target Plate


• 1x Carry Case
