Description

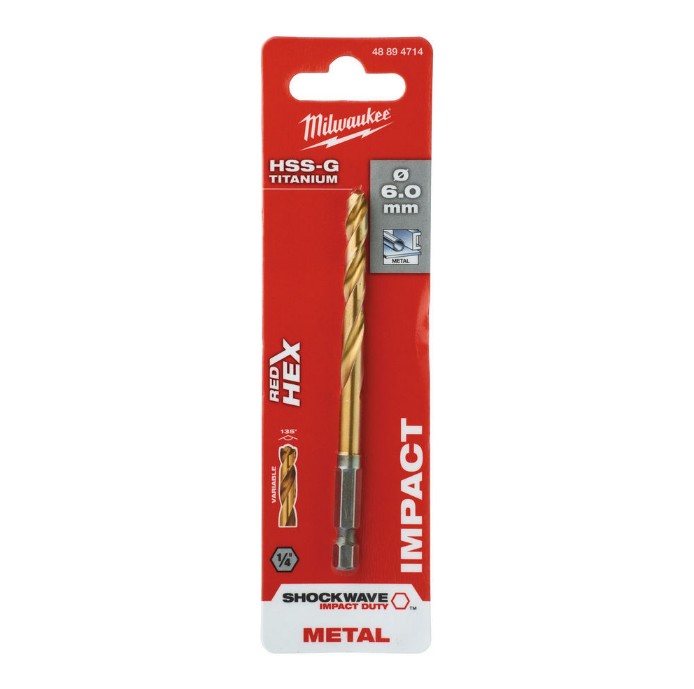

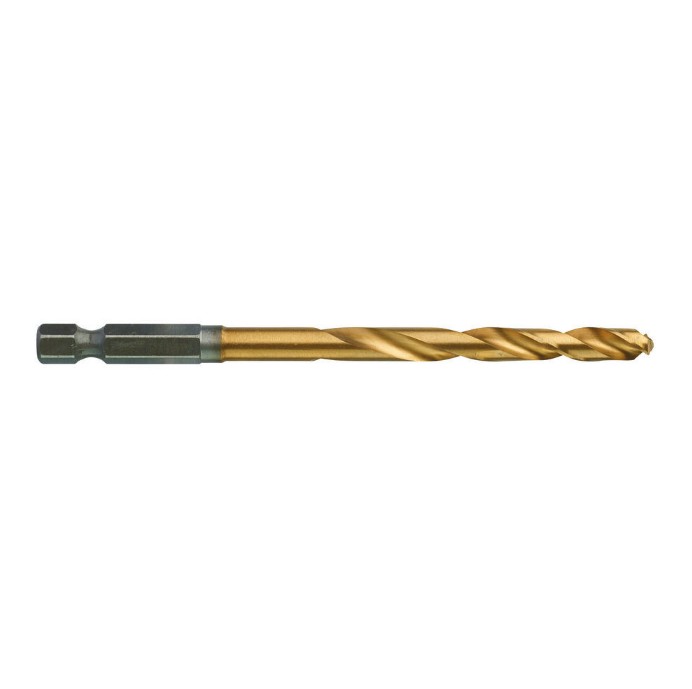

Milwaukee 48894714 HSS Red Hex Shockwave HSS Ground Tin Metal Drill Bit is ideal for use with impact drivers and drill drivers due to the impact rated drill bits that have 1/4 hex shank. The chip breaker tip is able to split up the size of the material from the cutting edge. By splitting the material and having a titanium coat, this helps to cool down the material and dispense heat. The flute design enables users a faster material ejection and decreases heat build up. A precision start is achieved when using the drill bits due to the 135° tip angle which also reduces tip walking.

Features:

• Impact rated drill bit with 1/4″ hex shank optimised for impact drivers.


• Titanium Nitride coating dispenses heat and makes the drill bit suitable for use also in high speed.


• QUAD EDGE Tip: unique combination of 135° split point and four cutting edges: 135° split point allows for precise & fast drilling start without walking. Four cutting edges create smaller chips to prevent heat build up for longer life.


• Variable flute geometry: For faster material ejection. Helps the bit run cooler and prevent it from burning out faster.


• Enhanced tapered web: Wider core towards the shank of the drill bit. Strengthens the core to increase overall flute durability.

Specification:

• Diameter: 6 mm


• Drill bit type: Metal drill bit


• Overall length: 105 mm


• Shank size: 1/4 inch


• Shank type: Hex


• Material (drill bit): HSS


• Surface treatment (drill bit): TiN


• Cutting length: 63 m
