Description

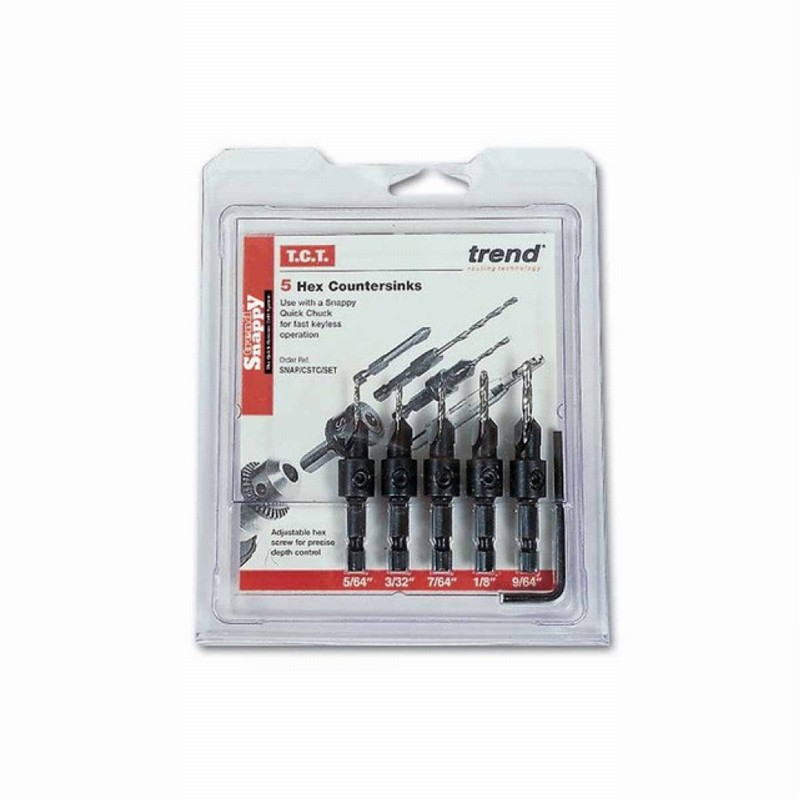

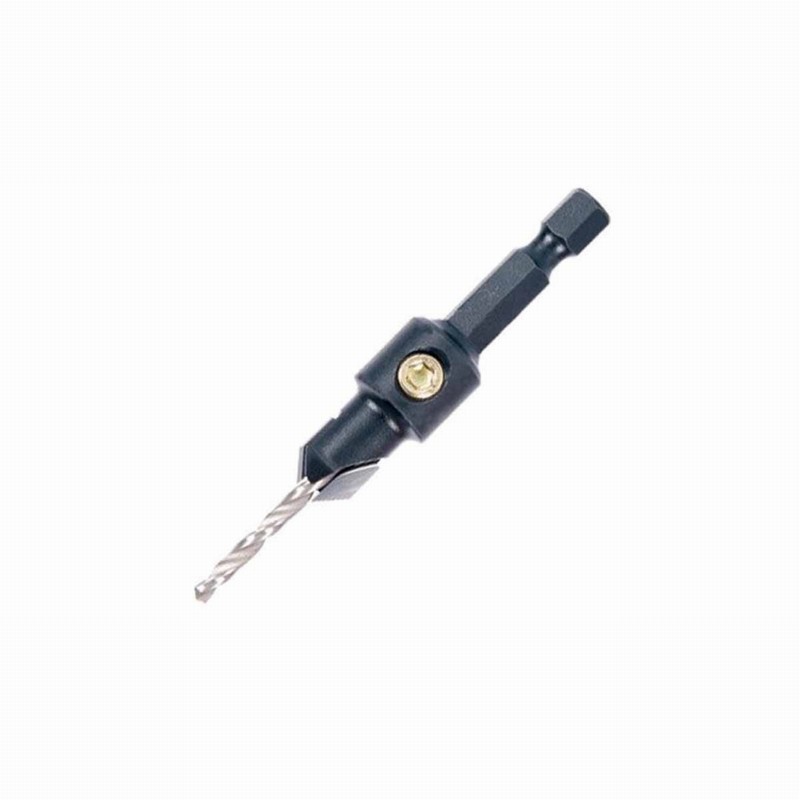

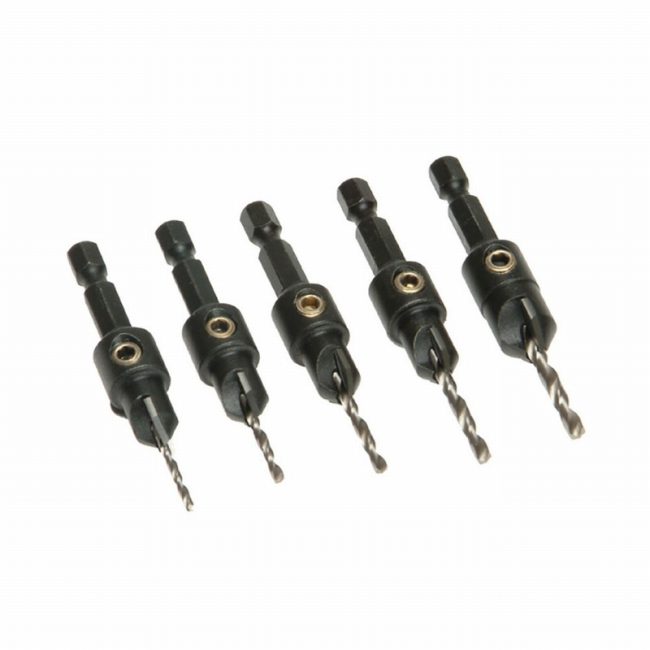

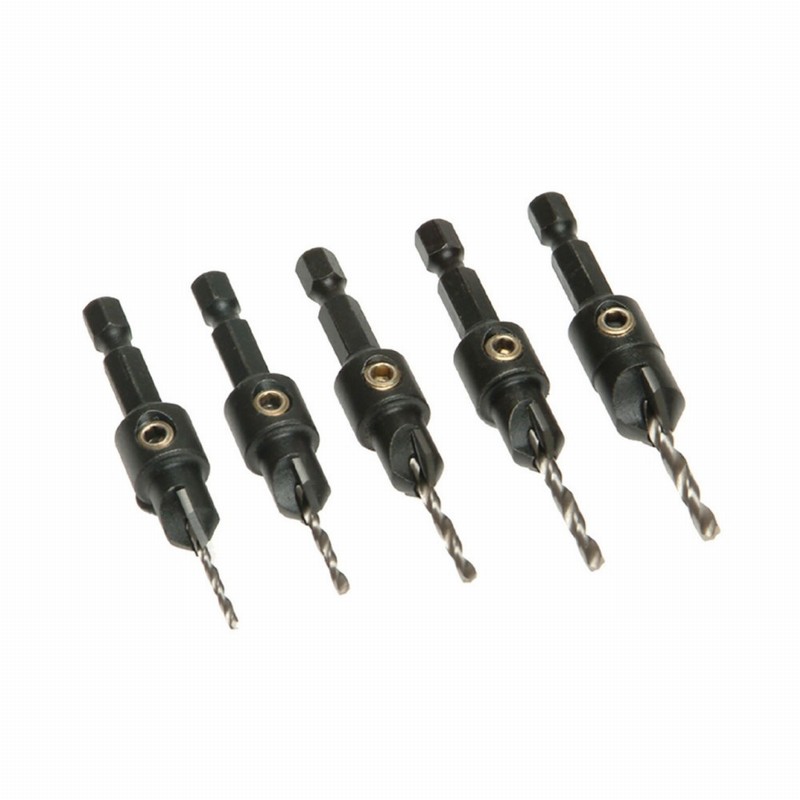

The Trend Countersink Set contains five heat treated tool steel countersinks with hex shafts. They are fitted with High Speed Steel drill bits to cover the full range of screw sizes and are self clearing.They are adjustable for different length screws and will produce a 9.5mm (3/8in) or 12.7mm (1/2in) diameter counterbored hole to fit standard woodplugs.

Features:

• A 5 piece set for all your countersinking and piloting needs covering Imperial screw gauges from No4 through to No12.


• Comprises 1 x 2.0mm (5/64″”) drill countersink, 1 x 2.5mm (3/32″”) drill countersink, 1 x 2.75mm (7/64″”) drill countersink, 1 x 3.25mm (1/8″”) drill countersink and 1 x 3.5mm (9/64″”) drill countersink with


• 9.5mm and 12.7mm counterbore diameters.”


• TCT cutting tips for assured, long life performance in all timbers and abrasive timber based materials including ply, MDF and chipboard.


• Adjustable drilling depth to suit material thickness with easily replaceable drills should any damage occur.


• Can be used to make countersinks and can also be used for counterbores; ideal for use with Trend Snappy SNAP/PC/95T or SNAP/PC/38 Plug Cutters for applications where the fixings need to be hidden.

Specification:

• Shank Diameter: 1/4 inch hex


• Softwood: No.6 (3.5mm) to No.12 (5.5mm)


• Hardwood: No.4 (3mm) to No.10 (5mm)


• Drill dia.: 2mm to 3.5 mm


• Countersink dia.: 9.5 mm & 12.7 mm

Set Includes:

• 1 x 2.0mm (5/64in) Drill and C/S Size No.4.


• 1 x 2.4mm (3/32in) Drill and C/S Size No.6.


• 1 x 2.8mm (7/64in) Drill and C/S Size. No.8.


• 1 x 3.2mm (1/8in) Drill and C/S Size. No.10.


• 1 x 3.6mm (9/64in) Drill and C/S Size. No.12.
